    5.5/7.5/11/15KW 4000rpm Fuel Injection Common Rail Test Bench 700

    Ask Lasest Price
    Brand Name : XBC
    Model Number : 700
    Price : Negotiation
    Payment Terms : TT, Western Union
    Supply Ability : 50 Sets Per Month
    Delivery Time : 15-30 Days
    • Product Details
    • Company Profile

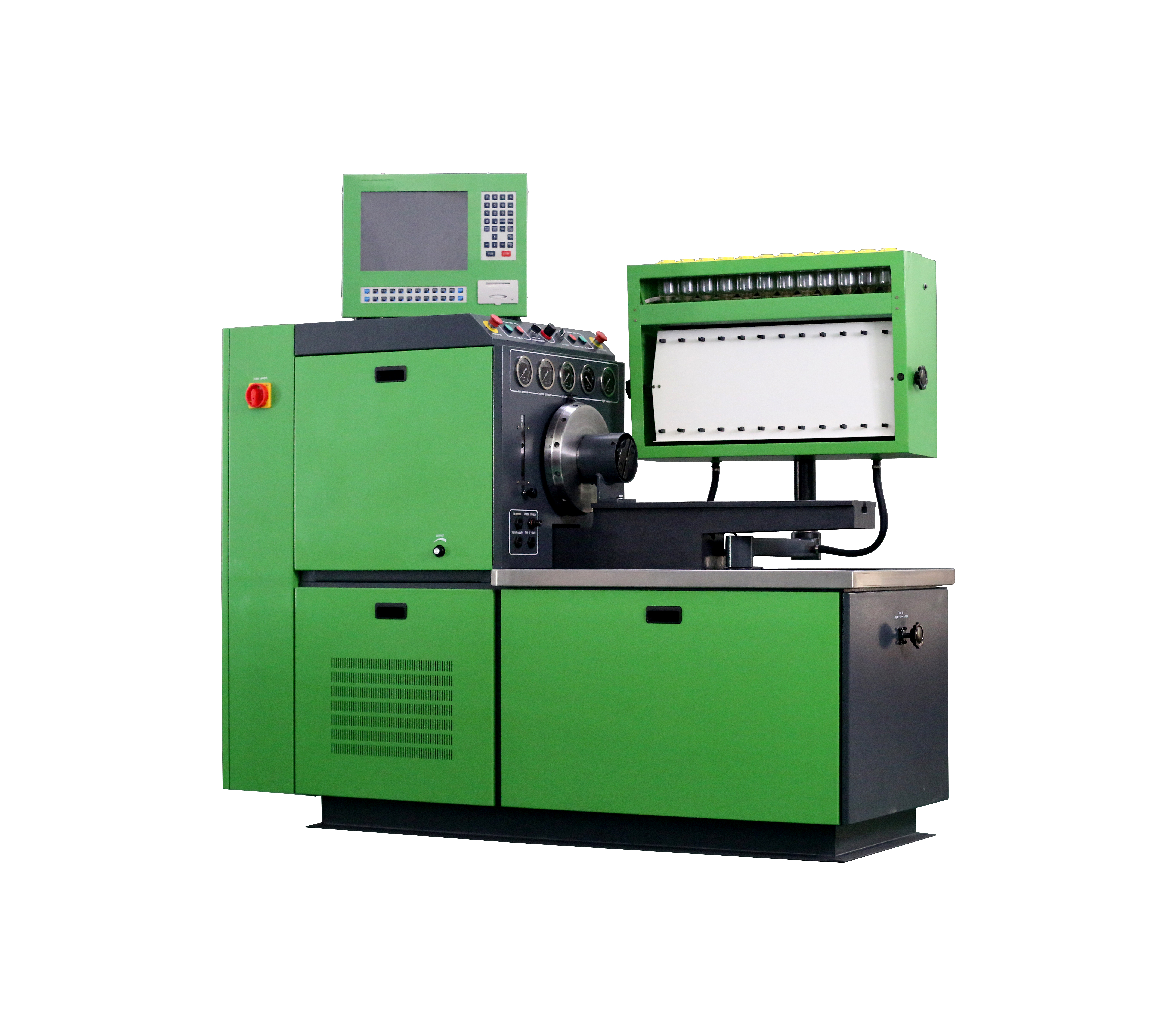

    5.5/7.5/11/15KW 4000rpm Fuel Injection Common Rail Test Bench 700

    Fuel Injection Test Bench 700


    The test bench allows you to perform procedures related to testing and checking Common-Rail injectors of various manufacturers (Bosch, Denso, Delphi, Cummins, ) installed on diesel engines of light and medium car.


    Specifiions
    Motor Power:5.5/7.5/11/15KW
    Power Supply:3-380V 415V/50HZ 3-220V/60HZ. single 220V/50HZ
    Protection Level:IP54
    Speed Range:0-4000rpm
    Counter Setting Range:0-9999
    Temperature Setting Range:0-80℃
    Center Height Of Driving Shaft:125mm
    DC Power:12/24V
    Diameter Of Driving Connector:120mm
    Measuring Tube:45ml,150ml,260ml (optional)
    Number Of Measuring Cylinder:2006/8/12
    Fuel Supply Pump:10L/min
    Fuel Supply Pressure:high pressure:0-40bar; low pressure:0-4bar
    Fuel Tank Cubage:60L
    Pressure Meter:0-6bar; 0-60bar; 0-16bar; -1-2.5bar; 0-10bar
    Heat Power:2KW
    Temperature Controlled Range:30-60℃
    Power Cable:5pin
    Dimensions:1250x700x1700mm
    Packing Dimensions:1500x900x1800mm
    Weight:750kg

    Main Functions
    Fuel delivered from each cylinder on any speed can be tested
    Speed, temperature can be displayed on the numeric unit of test bench
    Forced oil lubriion function (optional)
    Directly driven by motor, variable frequency stepless speed regulation
    Static inspection on the delivery time of each cylinder
    Inspection on performance of the mechanical and pneumatic governor
    Inspection on performance of the solenoid valve
    Inspection on performance of the minus pressure of pneumatic governor
    Inspection on the performance of the pressure compensator
    Oil returned volume of distribute pump
    Inspection on the inner pressure of the VE pump
    Inspection on the performance of the minus pressure of pneumatic governor
    Inspection on the pump body sealing performance
    One year warranty
